Run Logic App workflows in sequence by indexing with the Sequence Controller

motivation

Some dependent external systems can't handle parallel message processing or requires a certain order of messages. Sending messages serially (for example, by setting the concurrency on a Logic App to 1) can be a solution, at the cost of a big performance impact.

🌍 A customer story from the trenches
A downstream application cannot handle multiple calls at the same time for the same order ID, by using the Sequence Controller we are able to make sure that a single call per order ID is done (by using the order ID in the sequenceName) and we do not have the use the concurrency option for the Logic App which would dramatically slow down the processing for all messages.

The Invictus Framework provides a Sequence Controller component that allows you to process Logic App workflow runs in a specified order. This way, even though workflows might be triggered in parallel, the dependent external system is not overblown with messages.

🔗 See also the Message Sequence integration pattern.

Available endpoints​

The Sequence Controller component is available as a HTTP endpoint in your Logic App workflow. To include sequence processing to your workflow, these three HTTP interaction tasks should normally be added:

⚡ There also exists a /api/ResetSequence action that allows admins to externally remove references to old sequences or possibly reuse sequence names.

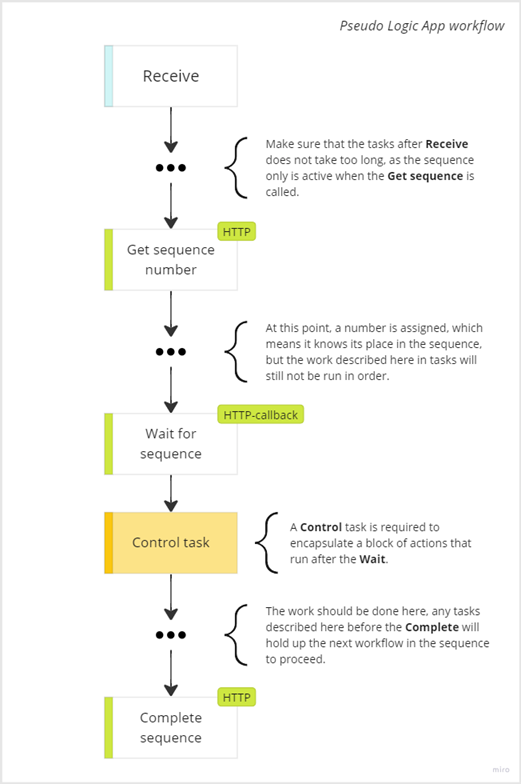

Pseudo Logic App workflow with Sequence Controller

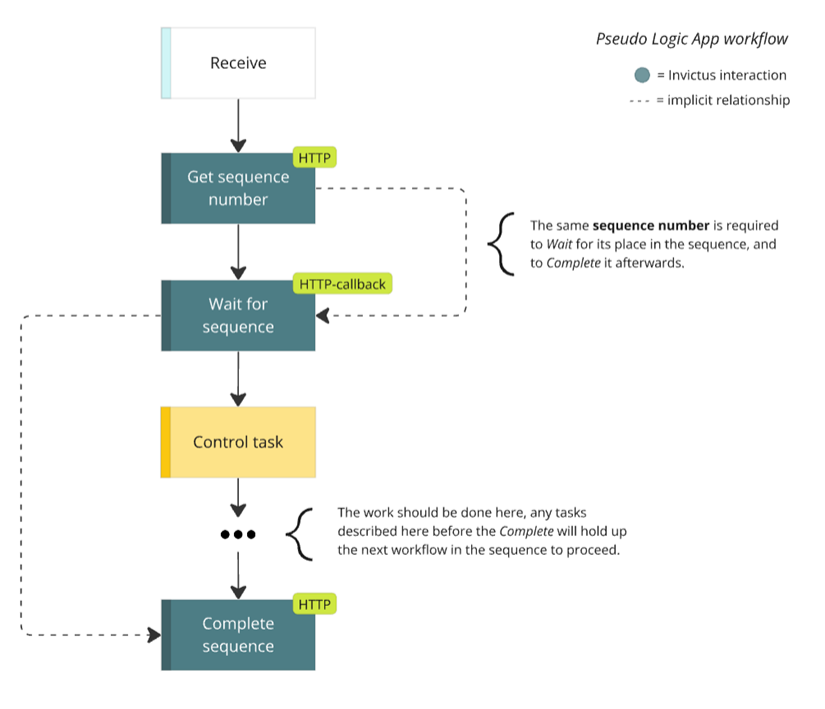

The idea is that workflows are processed in sequence after the Wait. The place between the Wait and Complete task allows you to place your own logic that needs to run in order. If workflow 1 gets triggered before workflow 2, the second workflow will wait for the first workflow.

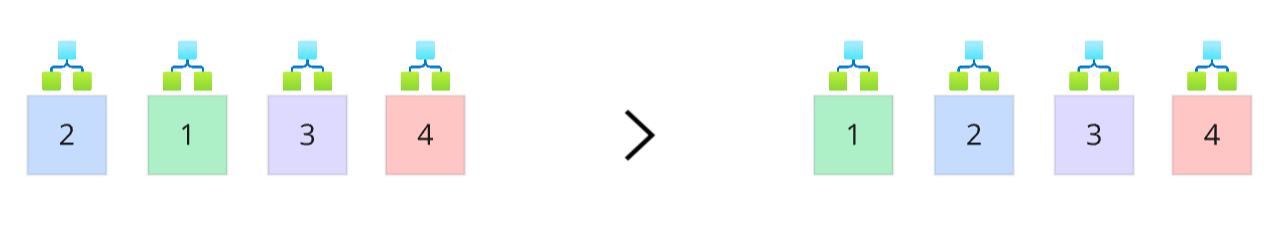

Pseudo Logic App workflow runs with Sequence Controller

⬅️ Get sequence number​

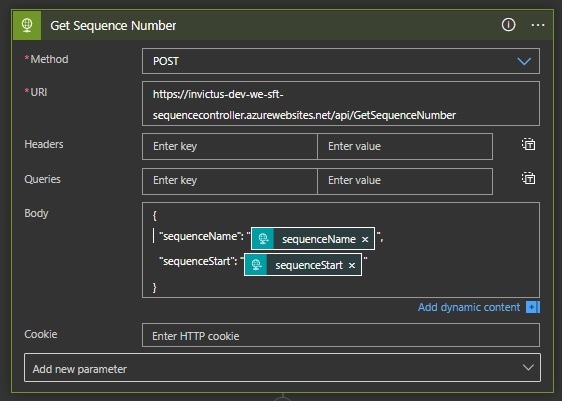

First step for the Logic App workflow to run in sequence, is to take a number in the line. Doing this requires you to send a HTTP POST request to the /api/GetSequenceNumber endpoint of the deployed Sequence Controller.

tip

This step can be circumvented in some advanced scenarios where you keep track of the order numbers and pass it yourself during the Wait for sequence.

The most simple request body only contains the name of the sequence. This name can be seen as the transactional group that chain all related workflows. Assuming this is the first workflow, it will receive number 1 in the response body; the second workflow will receive number 2, and so forth.

// POST /api/GetSequenceNumber
{
  "sequenceName": "<my-sequence-name>",
}

The response body containing this counter is required for the next step: Wait for sequence

start later

If you want to start the sequence at a later point, you can also pass the sequenceStart with your own start number. Only make sure that you pass this along subsequent calls.

// POST /api/GetSequenceNumber
{
  "sequenceName": "<my-sequence-name>",
  "sequenceStart": 10
}

⌛ Wait for sequence​

The next step for the Logic App workflow to run in sequence, is to wait its turn. To facilitate this, the counter collected from the previous Get sequence number step is required.

To make the workflow wait, a HTTP-callback task is required in the workflow. This allows you to pass in a webhook that the deployed Sequence Controller can call when its the workflow's turn to proceed.

The following request needs to be send in this HTTP callback task:

// POST /api/WaitForExecution
{
  "sequenceName": "<my-sequence-name>",
  "counter": @sequenceCounter, // Collected via /api/GetSequenceNumber.
  "callbackUri": @listCallbackUrl() // Available through the HTTP-callback task.
}

☑️ Complete sequence​

The final step for the Logic App workflow to run in sequence, is to signal the completion of the item in the sequence. This will allow the next workflow to proceed. To facilitate this, the counter collected from the previous Get sequence number step is required.

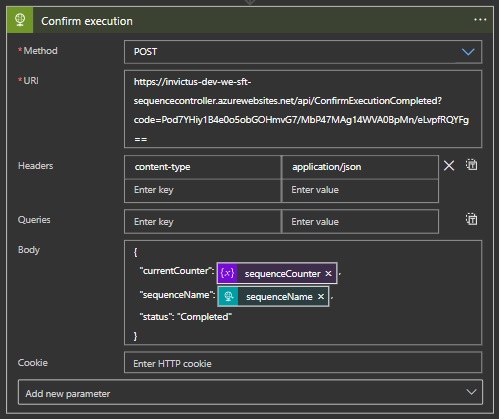

To complete the in-sequence work of the workflow, a HTTP task is required that sends this request.

// POST /api/ConfirmExecutionCompleted
{
  "sequenceName": "<my-sequence-name>",
  "currentCounter": @sequenceCounter, // Collected via /api/GetSequenceNumber
}

🔄 Reset sequence​

The deployed Sequence Controller allows admins to reset previously stored sequences. This could be useful if certain sequence names should be reused for other purposes, or for cleaning references.

danger

This action SHOULD NOT be part of any Logic App workflow as resetting sequences in the middle of processing will result in indefinitely 'hanging' workflow runs.

Resetting can be done with sending the following request:

// POST /api/ResetSequence
{
  "sequenceName": "<my-sequence-name>"
}

Customization​

Related Bicep parameters

The following Bicep parameters control the inner workings of the Sequence Controller component. See the release pipeline step of the deployment of the Invictus Framework to learn more.

Bicep parameterDefaultDescription
storageAccountNameinvictus{resourcePrefix}storeThe name of the Azure Storage Account (used by other Framework components as well) where the sequencecontroller Azure Blob Storage container will be located where Azure Logic App workflow sequences are stored.
sequenceControllerScaling{ cpuResources: '0.5', memoryResources: '1.0Gi', scaleMaxReplicas: 1, scaleMinReplicas: 0, concurrentRequests: 10 }The Container App options to control scaling. See scaling rules in Azure Container Apps.
sequenceControllerFunctionNameinv-${resourcePrefix}-seqcontrollerThe name of the Azure Container App to be created for the Sequence Controller component.
